Experience of PLUTON company in implementation of modern traction substations at Kharkiv Metro

19 years implementation of the latest technologies

2003
2004-2005
2006
2007-2009
2010
2011-2015
2017

Sites

"Botanichnyi Sad" station

Works performed

Supply of rectifiers, tunnel equipment and metro ventilators control equipment

Sites

Kharkiv Metro substation

Works performed

Supply of automatic load transfer cabinet. Supply of metro ventilators control cabinet SHSAUV.

Sites

"23 Serpnia" station

Works performed

Supply of "turn-key" substation

Sites

"Oleksiivska" station

Works performed

Supply of "turn-key" combined traction step-down substation. Supply of ventilators control system cabinets.

Sites

"23 Serpnia"-"Oleksiivska" section

Works performed

Supply of switchgears for tunnels

Sites

"Peremoha" station

Works performed

Supply of "turn-key" substation. Installation supervision, commissioning, startup of "Peremoha" station substation.

Sites

"Istorychnyi Myzei" station and Kharkiv Metro Administration building

Works performed

Supply, installation, adjustment of tunnel equipment for dead end of "Istorychnyi Muzey" station and low-voltage equipment (switchgear 825 V and 6 KRU cubicles 0.4/0.23) for power supply of Kharkiv Metro Administration building.

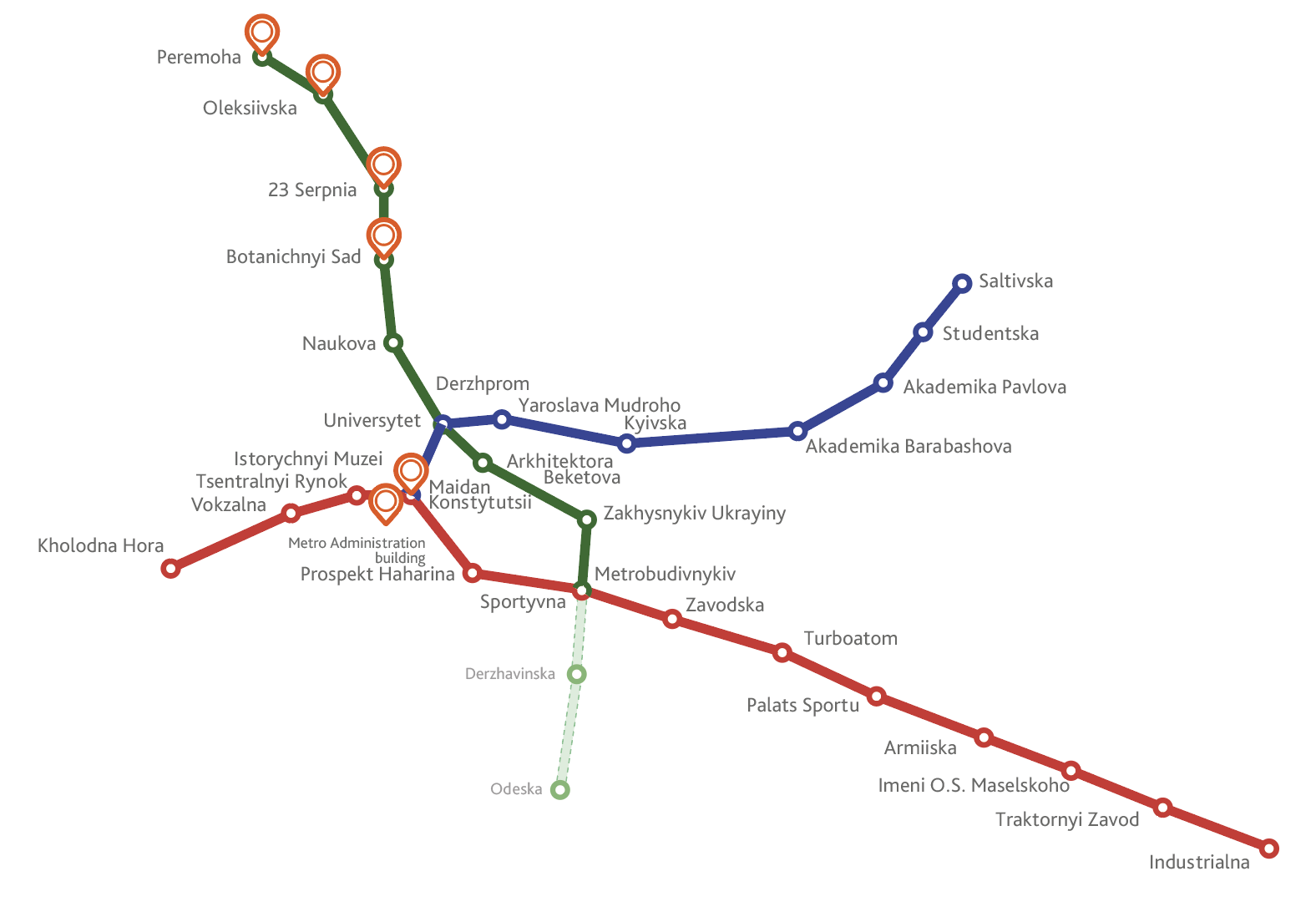

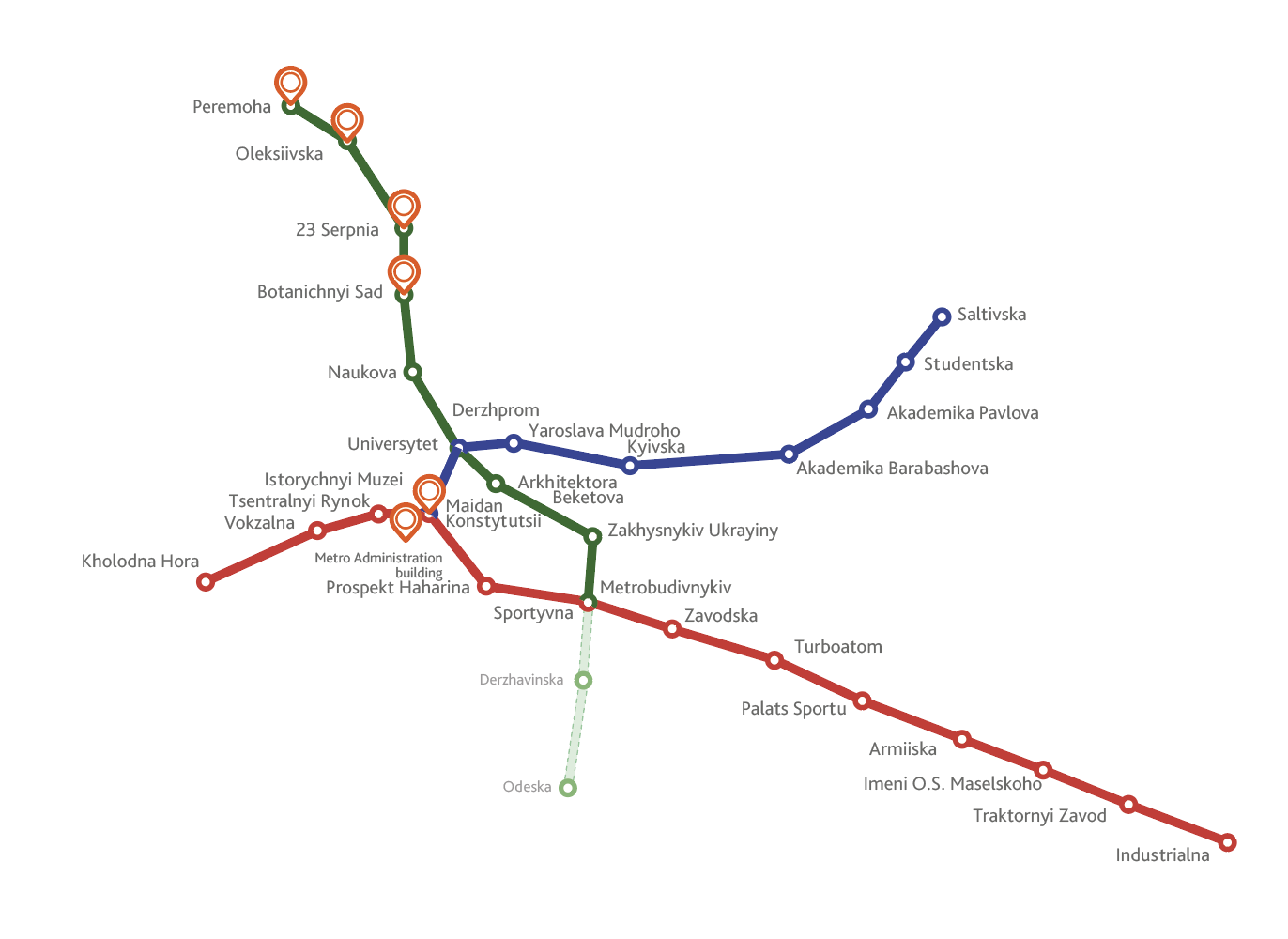

Kharkiv is the one of the largest industrial, business and cultural centers of Ukraine. One and a half million city occupies territory of more than 300 km². Public transport is of great importance for Kharkiv city. Metro, which connects the largest districts with the city center, forms the basis of the whole traffic system. Nowadays, Kharkiv Metro consists of 3 lines and 30 stations with total length of 38,45 km. PLUTON has successfully implemented modern, innovative equipment for power supply, which meets European and international quality and safety standards, at 4 stations.

PLUTON also successfully carried out supply of equipment for modernization of "23 Serpnia" and "Botanichnyi Sad" stations, as well as integrated "turn-key" supply of traction substations for new "Oleksiivska" and "Peremoha" stations.

Supply package included a full range of the new generation equipment manufactured by PLUTON: rectifiers series V-TPED, dry power transformers, set of switchgears 825 V, AC and DC switchgears 0.23 kV and 0.4 kV, ventilators automatic control devices, charge and additional charge devices, as well as other modern equipment.

In 2017 PLUTON carried out supply, installation, adjustment of tunnel equipment for dead end of "Istorychnyi Muzey" station and low-voltage equipment for power supply of Kharkiv Metro Administration building.
